dé 11kW Wallbox with 7.5m cable (APP VERSION)
0,00 zł
dé Wallbox 11kW
The dé 11 kW Wallbox is a charging station for electric vehicles with a Type 2 connector according to the IEC 62196-2 standard. It supports both single-phase and three-phase charging, offers adjustable charging current, control via the Tuya Smart app, and safety protection including RCD Type B.
Key Features
- Charging power of 11 kW
- Compatibility with electric vehicles with Type 2 connection according to IEC 62196-2.
- Adjustable charging current: 6 A, 8 A, 10 A, 13 A, or 16 A.
- Smart control via the Tuya Smart app for Android and iOS.
- RCD Type B safety protection: AC 30 mA + DC 6 mA.
Faster Home Charging
The 11 kW wallbox enables significantly faster charging than a standard Schuko socket.
Adjustable Current and Delayed Charging
The charging current can be set to 6 A, 8 A, 10 A, 13 A, or 16 A. This allows the wallbox to adapt to different charging current requirements and makes it suitable for use with photovoltaic systems. Delayed charging from 0.5 to 8 hours is also available.

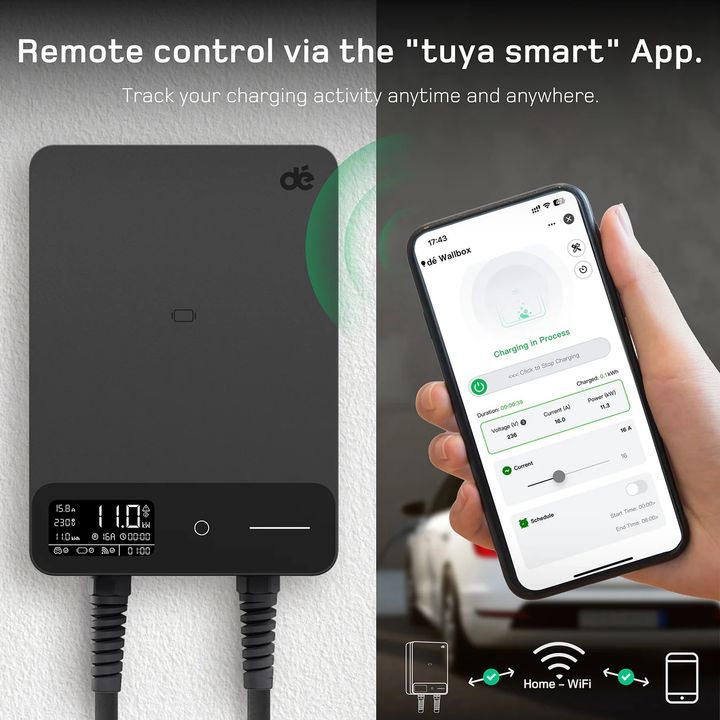

Smart Features via the Tuya Smart App
The Tuya Smart app for Android and iOS enables scheduled charging, power adjustment, remote start and stop of charging, as well as checking charging records.
Safety Protection During Charging
The wallbox is equipped with RCD Type B protection: AC 30 mA + DC 6 mA. It offers protection against residual current, overcurrent, overvoltage, and undervoltage, helping to protect both the charger and the electric vehicle during charging.
LCD Display
The LCD display shows real-time information about power, current, voltage, and charged capacity.
RFID Access for Multiple Users
The RFID function allows convenient starting or stopping of charging using an RFID card. The package includes 3 RFID cards, making controlled access to the wallbox easier.
Specification
| Parametr | Podrobnosti |
|---|---|
| Voltage | 400V AC, 50 Hz |
| Power | Max. 11kW |
| Standard | IEC 61851-1, IEC 62196-2 |
| Certificate | CE |
| Scenes | Indoor/Outdoor |
| Control Box Size | L297xW214xH105(mm) |
| IP Rating | IP54 (Wallbox), IP55 (Type 2 coupled) |
| Current Switching | 6A ~ 16A |
| Working Environment Temperature | -25°C ~ 55°C |
| Storage Temperature | -40°C ~ 80°C |
| Environment Humidity | 5% ~ 95% RH, Non-Condensing |
| Sinusoidal Wave Distortion | Total Harmonic Distortion (THD) ≤ 5% |
| Standby Power Consumption | < 5W |
| Protection | Over-Current, Over-/Under-Voltage, Leakage, Short-Circuit, Grounding, Temperature Control |
| RCD | Type-B AC 30mA + DC 6mA |
| LED | Power, Standby, Charging, Fault LED Indicator. |
App Function
| Remote Start/Stop | Real-time Monitoring |
| Infinitely Adjustable Current | All-day Scheduled Charging |
| Charging History | RFID Toggle |
